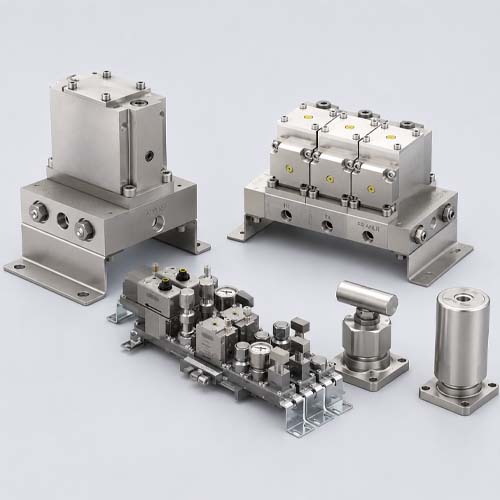

HOKE CT76 Modular Substrate System Distributor in India

Priminox Overseas is an authorised distributor of the HOKE CT76 modular substrate system in Mumbai, India. The CT76 is a surface-mount platform for sample conditioning systems used in process gas chromatographs and online analysers, compliant with the ANSI/ISA 76.00.02 modular interface standard. We stock the full CTDV component range, including DV1 two-way valves, DV5 three-way switching valves, DSS and DSV atmospheric reference valves, DBB double-block-and-bleed valves, DBC and DBA DBB manifolds, and the CT76 DMT 2000 multi-variable transmitter at our ISO 9001 and ISO 14001 certified Mumbai warehouse. Bodies come in 316L Stainless Steel, Monel and Hastelloy C-276 with Elgiloy AMS 5876 diaphragms, rated from vacuum (50 torr) up to 500 psig (34 barg) on the standard substrate range.

Request Authorisation Letter

ISO 9001:2015 Certified

Quality guaranteed

Pan India Delivery

3–7 working days

Authorised Distributor

Auth letter on request

24/7 Technical Support

+91 9930544098

Complete Range of HOKE CT76 Substrate and Component Valves

The CT76 platform combines diaphragm valve technology with a low dead-volume, surface-mount design. All component valves share metal-to-metal seals to atmosphere, Elgiloy diaphragms, PCTFE or PEEK seats, and interlocking pins between the valve body and manifold baseplate for correct reassembly.

HOKE CT76 Modular Substrate System

Compliance: ANSI/ISA 76.00.02 (2002) and IEC 62339-1:2006 surface mount.
Body Materials: 316 and 316L stainless steel standard; Monel and Hastelloy C-276 optional.
Orifice Size: 0.110" ID (2.8 mm).
Flow Tube Size: 1/4" OD × 0.065" wall, 0.120" ID.
External Leakage: 1×10⁻⁵ cc/sec helium.
Maximum Working Pressure (substrate): 3,600 psig (248 barg). When populated with standard DV5, DBB, DSS or DSV valves, the system is limited to 500 psig (34 barg); with the large-diameter DV1, it can run to 3,600 psig.
Working Pressure Temperature Range (o-ring dependent): Viton standard −20 °F to +400 °F (−29 °C to +204 °C); Kalrez optional −40 °F to +550 °F (−40 °C to +287 °C).
Mounting Screws: #8-32 × 0.4375" SHCS for tubesets and substrate blocks; #10-32 × 0.4375" SHCS for surface-mount components.
Passivation and Cleaning Options: Silcosteel and Sulfinert by Restek; O₂ cleaning.
Design Tool: Microsoft Visio drag-and-drop with auto-calculated threaded-rod lengths and stream counts from 2 to 12 modules.

HOKE DV1 Two-Way Diaphragm Valve

Function: Pneumatic or manual quarter-plus-turn isolation.
Body Materials: 316L stainless steel, Monel, Hastelloy C-276.
Seats: PCTFE or PEEK.
Diaphragms: Elgiloy AMS 5876.
Orifice Size: 0.110" (2.8 mm).
Flow Capacity: 0.17 Cv.
Internal Volume: 0.16 cc.
External Leakage: 1×10⁻⁹ cc/sec helium (inboard).
Operating Pressure (inlet): Vacuum (50 torr) to 500 psig (small diameter), to 800 psig (medium diameter), to 3,600 psig (large diameter).
Operating Temperature: -40°F to +212°F (-40°C to +100°C) with PCTFE; -40°F to +400°F (-40°C to +204°C) with PEEK.
Pneumatic Actuator: Anodised aluminium standard, 40-micron sintered stainless steel inlet air filter.

HOKE DV5 Three-Way Switching Diaphragm Valve

Function: Three-way stream switching for GC sample lines.
Body Materials: 316L stainless steel, Monel, Hastelloy C-276.
Seats: PCTFE and PEEK.
Diaphragms: Elgiloy AMS 5876.
Orifice Size: 0.110" (2.8 mm).
Flow Capacity: 0.13 Cv.
Internal Volume: 0.64 cc.
External Leakage: 1×10⁻⁵ cc/sec helium (inboard).
Operating Pressure: Vacuum (50 torr) to 500 psig (34 barg).
Min Actuation Pressure: 50 psig at 50 psig process pressure.
Operating Temperature: -40°F to +212°F (PCTFE); 0°F to +400°F (PEEK).
Expansion: M2 Expansion Module turn-key kit available for adding streams.

HOKE DSS Atmospheric Reference Valve (Normally Open)

Function: GC diaphragm valve, normally open, with normally closed atmospheric reference.
Body Materials: 316L stainless steel, Monel, Hastelloy C-276.
Seats: PCTFE or PEEK.
Diaphragms: Elgiloy AMS 5876.
Orifice Size: 0.110" (2.8 mm).
Flow Capacity: 0.20 Cv.
Internal Volume: 0.231 cc (main analyser isolation valve to outlet port).
External Leakage: 1×10⁻⁵ cc/sec helium (inboard).
Operating Pressure: Vacuum (50 torr) to 500 psig (34 barg).
Min Actuation Pressure: 50 psig (3 barg).
Operating Temperature: -40°F to +212°F (PCTFE); 0°F to +400°F (PEEK).

HOKE DSV Atmospheric Reference Valve (Normally Closed)

Function: GC module with two normally closed shut-off valves plus an atmospheric reference.
Body Materials: 316L stainless steel, Monel, Hastelloy C-276.
Seats: PCTFE or PEEK.
Diaphragms: Elgiloy AMS 5876.
Orifice Size: 0.110" (2.8 mm).
Flow Capacity: 0.20 Cv.
Internal Volume: 0.231 cc.
External Leakage: 1×10⁻⁵ cc/sec helium (inboard).
Operating Pressure: Vacuum (50 torr) to 500 psig (34 barg).
Operating Temperature: -40°F to +212°F (PCTFE); 0°F to +400°F (PEEK).

HOKE DBB Double-Block-and-Bleed Diaphragm Valve

Function: On/off block and bleed in one body with an integrated sweep loop in the manifold.
Body Materials: 316L stainless steel, Monel, Hastelloy C-276.
Seats: PCTFE and PEEK.
Diaphragms: Elgiloy AMS 5876, multiple stacked.
Orifice Size: 0.110" (2.8 mm).
Flow Capacity: 0.23 Cv.
Internal Volume: 0.16 cc (between the block valves).
External Leakage: 1×10⁻⁵ cc/sec helium (inboard).
Operating Pressure: Vacuum (50 torr) to 500 psig (34 barg).
Proof Pressure: 2,000 psig (138 barg).
Burst Pressure: 8,000 psig (552 barg).
Min Actuation Pressure: 50 psig at 50 psig process pressure.
Package Size: 3" L × 1.5" W × 2.56" H.
Actuation: Pneumatic from the top or the manifold.

HOKE DBC and DBA DBB Manifolds

Function: DBB manifold with normally open (DBC) or normally closed (DBA) atmospheric reference valve.
Compliance: ANSI/ISA-76 surface mount.
Body Materials: Wide choice including 316L stainless steel, Monel and Hastelloy C-276.
Operating Pressure: Vacuum (50 torr) to 500 psig (34 barg).
Package Size: 3" L × 2.6" H × 1.5" W.
Actuation: Pneumatic, top air only on the DSV side.
Other Features: Metal-to-metal atmospheric seals, replaceable seats, stacked diaphragms, no dynamic O-rings or springs in the wetted path.

HOKE CT76 DMT 2000 Digital Multi-Variable Transmitter

Function: Digital flow, pressure and temperature transmitter mounted directly onto the CT76 substrate.
Platform: Drops into the CT76 modular system with no extra adapters.
Compliance: ANSI/ISA 76.00.02.

Order Genuine HOKE CT76 from
— Priminox Overseas

Order the best-quality HOKE CT76 from Priminox Overseas.

Email Sales Team Call +91 9930544098

Industries We Supply HOKE CT76 Components To

HOKE CT76 modular valves and substrate systems run inside sample conditioning systems and process analyser cabinets across the following industries:

Oil and Gas

Chemicals and Petrochemicals

Power Generation

Pulp and Paper

Hydrogen and Alternative Fuels

Download HOKE Catalogue & Get in Touch With Our Team

Access HOKE product information and connect with our team for technical assistance and stock availability.

HOKE Catalogue

Download the complete HOKE product Catalogue with full specifications, dimensions, ordering codes, and material options for all product categories.

Download HOKE Catalogue (PDF)

Request a Quote

Need pricing, lead time, or technical assistance? Our team responds within 24 hours.

info@priminox.com

+91 9930544098

Ex-Stock from Mumbai Warehouse

Distributor Verification: To request an official copy of our Distributor Authorisation Letter, please email us.

Email Us Now

HOKE CT76: Sourcing and Technical Questions, Answered

The HOKE CT76 platform is compliant with ANSI/ISA 76.00.02, the modular surface-mount interface standard for sample conditioning systems used in process gas chromatographs and online analysers.

The DV1 is a two-way on/off isolation valve, the DV5 is a three-way stream-switching valve, the DBB is a double-block-and-bleed valve with an integrated sweep loop, and the DSS and DSV are atmospheric reference modules (normally open and normally closed, respectively) used to vent the analyser line during purge and calibration.

The CT76 substrate itself is rated to 3,600 psig (248 barg). Component valves limit the populated system: the DV5, DSS, DSV, DBB, DBC and DBA are rated to 500 psig (34 barg), with proof pressure 2,000 psig and burst pressure 8,000 psig; the DV1 is rated to 500 psig with the small actuator, 800 psig with the medium actuator and 3,600 psig with the large actuator (surface-mount large-diameter only).

We supply CT76 valve bodies in 316L Stainless Steel, Monel and Hastelloy C-276, with the same three materials available for baseplates and end plates, so the whole assembly stays in one alloy family.

The temperature range depends on the seat: -40°F to +212°F (-40°C to +100°C) with PCTFE seats, and 0°F to +400°F (-18°C to +204°C) with PEEK seats.

Minimum actuation pressure: 40 psig nominal for the DV1 small and medium diameter, 50 psig for the DV1 large diameter, and 50 psig at 50 psig process pressure for the DV5, DBB, DSS and DSV.

Yes, we build CT76 assemblies from 2-module up to 12-module manifolds using interlocking baseplates and the HOKE drag-and-drop Visio design tool, with threaded rods sized per module count.
