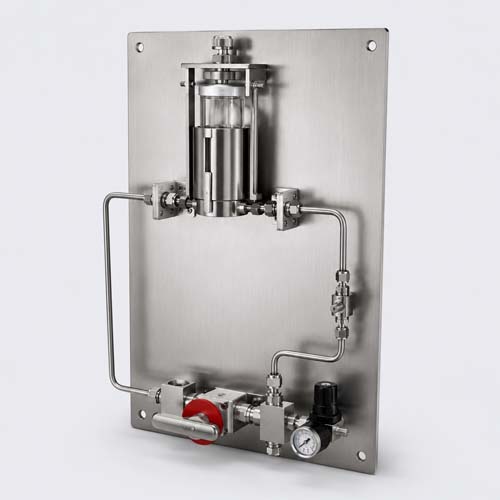

DOPAK Sample Handling Systems Distributor in India

Priminox Overseas is the authorised distributor and stockist of DOPAK Sample Handling Systems in India. These systems recover liquid samples and empty (liquefied) gas cylinders inside a closed loop, so no spillage or volatile vapour reaches the operator or the lab. We stock the Sample Recovery System (SRS / I1) and the Cylinder Emptying System (CES / J1) at our Mumbai warehouse, both built in SS 316 or SS 316L. The CES handles pressure up to 103 bar (1500 psig) at 20°C, and the SRS is rated 34 bar (493 psig) at 20°C, with single-handle, four-position operation on both units.

Request Authorisation Letter
ISO 9001:2015 Certified
Quality guaranteed
Pan India Delivery
3–7 working days
Authorised Distributor
Auth letter on request
24/7 Technical Support
+91 9930544098

Complete Range of DOPAK Sample Handling Systems

The sample handling system line covers two manual, closed-loop units. Both run on a nitrogen purge and a single handle that moves between off, recover/analyse, and vent positions.

DOPAK Sample Recovery System SRS I1 Distributor in India

DOPAK Sample Recovery System (SRS / I1)

The SRS recovers a liquid sample from a sealed sample bottle. Nitrogen drives the liquid out through a concentric needle assembly to the process-out connection, then cleans the needle, sleeve and sample bottle.

  • Material: Stainless Steel 316 or 316L.
  • Sleeve: 60 cc sleeve with bottle retaining clip and thumb screw.
  • Needle Assembly: Single-piece VTO concentric needle assembly with vent to outlet, 1/4" FNPT. Process/vent needle ID: 1.35 / 3.00 mm.
  • Valve: Three-way ball valve type H7165, PTFE seats.
  • Pressure Range: 34 bar at 20°C (493 psig at 70°F).
  • Temperature Range: -40 to +177°C (-40 to +350°F).
  • Operation: Manual, single handle, four positions: 0-off, 1-recovery, 2-vent, 3-off.
  • Connections: 1/4" FNPT.
  • Features: Closed recovery with no spillage, one-handle operation, full system purge, and sample-bottle depressurisation.
  • Applications: Plant laboratories, liquid sample bottle recovery.
DOPAK Cylinder Emptying System CES J1 Distributor in India

DOPAK Cylinder Emptying System (CES / J1)

The CES empties a 500 cm³ cylinder of (liquefied) gas without venting product to the atmosphere. A nitrogen purge needle valve and a drain/analyse three-way ball valve let the operator route the cylinder contents to an analyser, drain the line, then depressurise the quick-connect couplings.

  • Material: Stainless Steel 316 or 316L.
  • Cylinder Size: 500 cm³.
  • N2 Purge Valve: Needle valve with PFA seats. Pressure 103 bar at 20°C (1500 psig at 70°F). Temperature -54 to +232°C (-65 to +450°F).
  • Drain/Analyse Valve: Three-way ball valve type W83, PTFE seats with FKM A O-rings. Pressure 103 bar at 20°C (1500 psig at 70°F). Temperature -17 to +232°C (0 to +450°F).
  • Operation: Manual, single handle, four positions: 0-off, 1-analyse, 2-drain, 3-off.
  • Connections: Quick-connect couplings to the cylinder. 1/4" FNPT to drain/analyse line. 1/4" FNPT to purge line.
  • Features: Closed emptying with no spillage, depressurisation of the quick-connect couplings.
  • Applications: Plant laboratories, (liquefied) gas sample cylinder emptying.

Order Genuine DOPAK Sample Handling Systems from
— Priminox Overseas

Send your sample type (liquid or gas), pressure, temperature, and connection size, and we'll match you to the SRS or CES model and confirm stock from our Mumbai warehouse.

Email Sales Team Call +91 9930544098

Industries We Supply DOPAK Sample Handling Systems To

Dopak Sample Handling Systems are used in plant laboratories to recover or empty sealed sample containers taken by closed-vent process samplers, in any plant that handles toxic, volatile or hazardous media.

Refining

Refining

Petrochemicals

Petrochemicals

Chemical Processing

Chemical Processing

Offshore Oil and Gas

Offshore Oil and Gas

Download DOPAK Catalogue & Get in Touch With Our Team

Access DOPAK product information and connect with our team for technical assistance and stock availability.

DOPAK Catalogue

Download the complete DOPAK product Catalogue with full specifications, dimensions, ordering codes, and material options for all open and closed sampling categories.

DOPAK Product Catalogue
Download DOPAK Catalogue (PDF)

Request a Quote

Need pricing, lead time, or technical assistance? Our team responds within 24 hours.

info@priminox.com
+91 9930544098
Ex-Stock from Mumbai Warehouse
Distributor Verification: To request an official copy of our Distributor Authorisation Letter, please email us.
Email Us Now

DOPAK Sample Handling Systems: Sourcing and Technical Questions, Answered

  • The SRS recovers a liquid sample from a 60 cc sample bottle, and the CES empties a 500 cm³ cylinder of (liquefied) gas. Both are closed-loop, nitrogen-purged, single-handle units, but they target different sample formats.

  • The SRS valve is rated 34 bar / 493 psig at 20°C, across -40 to +177°C. The CES valves are rated 103 bar / 1500 psig at 20°C, with -54 to +232°C on the N2 purge needle valve and -17 to +232°C on the drain/analyse ball valve.

  • Both the SRS and the CES are built from Stainless Steel 316 or SS 316L. Exotic materials are also available for aggressive media.

  • The SRS sleeve holds 60 cc of liquid sample. The CES cylinder holds 500 cm³ of (liquefied) gas. Larger or smaller sample sizes are listed as an option on both.

  • The nitrogen purge drives the liquid (SRS) or gas (CES) out of the bottle or cylinder under pressure, then cleans the needle assembly, sleeve and lines before the next sample. This keeps the recovery, or emptying step, closed and prevents volatile product from reaching the operator or the atmosphere.

  • The standard process connection is 1/4" FNPT on the SRS outlet and on the CES drain/analyse and purge lines. The CES couples to the gas cylinder through quick-connect couplings.

  • Yes. The SRS is offered with a pipe stand, enclosure and mounting brackets. The CES is offered with an enclosure, mounting brackets and a custom-made frame for non-standard lab layouts.

  • The SRS is designed for liquid samples taken into a septum-sealed sample bottle and returned to the process line. The CES is designed for (liquefied) gas held in a 500 cm³ sample cylinder, routed to an analyser and then drained, both within a closed loop.
