DPDS-250 Open Sampler for Liquid
- Media: Low-hazard liquids.
- Diameter: 32 mm.
- Length: 1040 mm.
- Sample Volume: 250 cm³.
- Operating Pressure: Atmospheric.
- Application: Sampling from storage tanks, drums, and process lines at atmospheric pressure.
DOPAK Open Sampling Systems Distributor in India
Priminox Overseas is the authorised distributor and stockist of DOPAK open sampling systems in India. These open and partly-open samplers draw fixed-volume samples of low-hazard liquids and solids from storage tanks, drums, bags, and process lines at atmospheric pressure. We stock the DPBM, DPTK, DPZK, DPFH, and DPDS liquid samplers along with the DPVS, DPGM, and DPSM filling assemblies for solids at our ISO 9001 and ISO 14001 certified Mumbai warehouse. Sample volumes range from 250 cm³ to 1000 cm³ for liquid samplers, with sampler diameters from 20 mm up to 125 mm across the liquid and solid series.
Complete Range of DOPAK Open Sampling Systems
The DOPAK open sampling range covers both liquid and solid media. Each series targets a specific container type, granulate size, or sampling location. We stock seven liquid samplers across the DPDS, DPBM, DPTK, DPZK, and DPFH series, and five filling assemblies across the DPVS, DPGM, and DPSM series for solids.
DPBM 250 Open Sampler for Liquid
- Media: Low-hazard liquids.
- Diameter: 57 mm.
- Length: 335 mm.
- Sample Volume: 250 cm³.
- Operating Pressure: Atmospheric.
- Application: Fixed-volume sampling of low-hazard liquids from drums and open containers.
DPBM 500 Open Sampler for Liquid
- Media: Low-hazard liquids.
- Diameter: 57 mm.
- Length: 420 mm.
- Sample Volume: 500 cm³.
- Operating Pressure: Atmospheric.
- Application: Higher-volume bottle-fill sampling from drums and tanks.
DPTK 500 Open Sampler for Liquid
- Media: Low-hazard liquids.
- Diameter: 57 mm.
- Sample Volume: 500 cm³.
- Operating Pressure: Atmospheric.
- Application: Open sampling at atmospheric pressure from process containers.
DPZK Open Sampler for Liquid
- Media: Low-hazard liquids, including thicker liquids.
- Diameter: 88 mm.
- Length: 225 mm.
- Sample Volume: 500 cm³.
- Operating Pressure: Atmospheric.
- Application: Wide-mouth sampling suited to thicker liquids and shorter sampling depths.
DPFH 500 Open Sampler for Liquid
- Media: Low-hazard liquids.
- Diameter: 115 mm.
- Length: 335 mm.
- Sample Volume: 500 cm³.
- Operating Pressure: Atmospheric.
- Application: Larger-bore open sampling from drums and bulk storage.
DPFH 1000 Open Sampler for Liquid
- Media: Low-hazard liquids.
- Diameter: 125 mm.
- Length: 385 mm.
- Sample Volume: 1000 cm³.
- Operating Pressure: Atmospheric.
- Application: One-litre fixed-volume sampling from storage tanks and bulk containers.
DPVS-200 Filling Assembly Solid
- Media: Granulates and powders.
- Diameter: 22 mm.
- Length: 1046 mm.
- Operating Pressure: Atmospheric.
- Application: Long-reach sampling of granulates and powders from deeper bags and containers.
DPGM 001 Filling Assembly Solid
- Media: Granulates and powders.
- Diameter: 20 mm.
- Length: 665 mm.
- Height: 47 mm.
- Breadth: 10 mm.
- Operating Pressure: Atmospheric.
- Application: Granulate and powder sampling from bags at atmospheric pressure.
DPGM 002 Filling Assembly Solid
- Media: Granulates, powders, and coarser solids.
- Diameter: 28 mm.
- Length: 680 mm.
- Height: 44 mm.
- Breadth: 14 mm.
- Operating Pressure: Atmospheric.
- Application: Granulate, powder, and coarser solid sampling from bags.
DPSM 200-001 Filling Assembly Solid
- Media: Granulates and powders.
- Diameter: 28 mm.
- Operating Pressure: Atmospheric.
- Application: Solid sampling from bags and open containers.
DPSM 100-002 Filling Assembly Solid
- Media: Finer granulates and powders.
- Diameter: 25 mm.
- Operating Pressure: Atmospheric.
- Application: Solid sampling for finer granulates and powders.
Order Genuine DOPAK Open Sampling Systems from
— Priminox
Overseas
Send your DOPAK part number or your sampling specifications (media, container type, sample volume, sampling depth), and we will confirm the model match, stock position, and price.
Industries We Supply
DOPAK Open Sampling Systems To
DOPAK open samplers serve sectors that handle low-hazard liquids, granulates, and powders at atmospheric conditions:
Chemical Processing
Petrochemicals
Refining
Oil and Gas
Power Generation
Biopharma
Download DOPAK Catalogue & Get in Touch With Our Team
Access DOPAK product information and connect with our team for technical assistance and stock availability.
DOPAK Catalogue
Download the complete DOPAK product Catalogue with full specifications, dimensions, ordering codes, and material options for all open and closed sampling categories.
Request a Quote
Need pricing, lead time, or technical assistance? Our team responds within 24 hours.
Distributor Verification: To request an official copy of our Distributor
Authorisation Letter, please email us.
Email Us Now
DOPAK Open Sampling Systems: Sourcing and Technical Questions, Answered
-

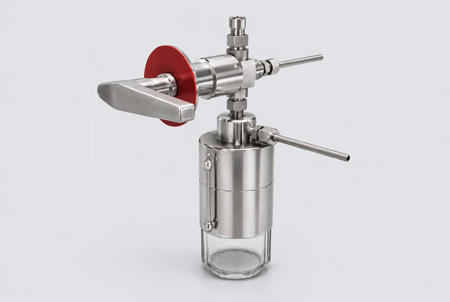

DOPAK open samplers work at atmospheric pressure only and are intended for low-hazard liquids and solids. For pressurised sampling above 0.7 bar vapour pressure, the Dopak cylinder-based closed sampling systems are the correct fit, including the S32-LG series for liquefied gases and high vapour-phase liquids, and the S32-G series for gases.
-
Liquid sample volumes are 250 cm³, 500 cm³, and 1000 cm³, covering the DPDS, DPBM, DPTK, DPZK, and DPFH series.
-
The DPBM has a 57 mm diameter; the DPFH has a 115 mm or 125 mm diameter. DPFH suits larger bulk containers where a wider bore speeds the fill; DPBM suits standard drums where a narrower body is enough.
-
No. Open samplers are rated for low-hazard liquids at atmospheric pressure. For toxic, volatile, or hazardous media, DOPAK closed-vent and closed-loop sampling systems are the right choice.
-
The filling assemblies handle granulates, powders, and grease sampled from bags at atmospheric pressure.
-
A DPFH 1000 holds 1000 cm³ per draw, the largest fixed volume in the DOPAK open liquid range.
-
Yes. We stock DOPAK sample containers, caps, septa, sleeves, valves, and handles for the open sampling range.
-
Yes. The DPZK has an 88 mm diameter and 225 mm length, which gives it a wide-mouth, short-body profile that handles thicker liquids better than the narrower DPDS and DPBM samplers.
Explore Other DOPAK Products from Priminox Overseas
Beyond open sampling, Priminox stocks the wider DOPAK sampling family for pressurised, hazardous, and gas-phase applications.
